Picking the right Modbus Port is actually pretty crucial if you want your industrial systems to communicate smoothly. I mean, John Smith from TechModbus Inc. really hits the nail on the head when he says, "The success of your network depends a lot on choosing the right Modbus Port." It’s all about making smart, informed decisions, you know?
Today’s landscape isn’t exactly straightforward—there are all sorts of Modbus Ports out there, with different types and features. Things like how far your signal needs to go, how fast data’s moving, and how you connect everything—these all matter a ton. Every choice you make can really affect how reliable and efficient your system is. For example, picking the wrong Port could cause delays in communication or even data loss, which you definitely don’t want. So, taking the time to evaluate your options carefully? Totally worth it.
Honestly, a lot of folks rush into picking a Modbus Port without giving it much thought. That’s a mistake. It’s super important to understand what your devices need and whether they’re compatible. Skimping on this step might lead to downtime or performance issues down the line. Bottom line: reliable communication isn’t something you can afford to mess around with, and it all starts with choosing the right Modbus Port.
Understanding Modbus Protocol and Its Applications
The Modbus protocol is widely used in industrial settings for communication between devices. It operates over serial lines and Ethernet. This flexibility makes it suitable for a variety of applications, including automation systems, HVAC, and energy management. Understanding the fundamentals is crucial for effective implementation.
One key aspect of the Modbus protocol is its simplicity. It enables seamless data exchange among equipment from different manufacturers. However, users must be aware of potential pitfalls. Misconfigurations can lead to communication issues. For instance, selecting the wrong port type or baud rate can disrupt operations.
When evaluating your needs, consider the specifics of your application. Think about the distance between devices and the amount of data transfer required. Different Modbus ports offer various speeds and functionalities. A wrong choice can hinder performance. It’s essential to weigh these factors for optimal system integration.
Modbus Port Selection for Different Applications
Types of Modbus Ports: RS-232, RS-485, and Ethernet
Choosing the right Modbus port is crucial for effective communication in industrial automation. The three primary types of Modbus ports are RS-232, RS-485, and Ethernet. Each type has its own unique benefits and use cases.
RS-232 is often utilized for short-distance communication. It typically supports connections up to 50 feet. However, it’s limited by the number of devices it can connect. This can be a drawback in larger setups.
RS-485, on the other hand, allows for 4,000 feet of communication distance and can connect multiple devices—up to 128 nodes. This makes it a preferred choice for extensive networks.
According to industry reports, approximately 70% of Modbus applications use RS-485 due to its versatility.
Ethernet Modbus ports are increasingly favored for their speed and ease of integration into existing IT infrastructures. They provide high data transfer rates and allow remote access, enhancing monitoring capabilities.
A report from the Automation World indicated that over 40% of new installations now favor Ethernet-based systems.
Tips: Always consider your network size before selecting a
Port Modbus. For small, local systems, RS-232 might suffice. For larger fields, opt for RS-485. Evaluate your data traffic needs; if you anticipate significant data flow, Ethernet could be the optimal choice. Balancing distance, device count, and speed will lead to more efficient system performance.
Assessing Your Device Compatibility with Modbus Ports
When choosing a Modbus port, ensuring device compatibility is crucial. Several factors impact how well the port will work with your system. According to a recent industry report, 70% of system failures stem from compatibility issues between devices and communication ports. Identifying if your device supports the Modbus protocol is fundamental. Some devices only work with specific Modbus configurations, making this assessment vital.
Additionally, pay attention to the type of Modbus port in use. For instance, a Modbus TCP port offers different advantages compared to a Modbus RTU port. The former allows for faster data rates and supports more devices over Ethernet. Conversely, the RTU option is often preferred for isolated systems of fewer devices. Data from market analyses show that about 60% of manufacturers favor Ethernet-based communication for scalability.
Consider reviewing your existing infrastructure. Outdated devices may not support the latest Modbus specifications, which can limit functionality. Based on recent studies, nearly 45% of industries face challenges in integrating older systems with modern Modbus Ip Ports. An understanding of these dynamics will enable better decision-making in your networking strategies.
Factors to Consider When Choosing a Modbus Port
When selecting the right Modbus port, several key factors come into play.
The communication method is crucial. You might choose between Modbus RTU,
TCP, or ASCII based on your application.
Each method has distinct advantages and limitations. A clear understanding of your system’s architecture is essential.
The baud rate is another critical parameter. Higher speeds can facilitate faster communication
but may introduce errors. Check whether your devices support the selected baud rate. Also, consider the physical layer.
For example, RS-232 is suitable for short distances, while
RS-485 allows longer communication ranges.
Tips: Always test your configuration before deployment.
It helps you spot potential issues early. Ensure your devices can handle the chosen settings.
Sometimes, less is more when it comes to features; focus on what you need.
Lastly, remember to assess your network’s scalability. If you anticipate growth, choose a Modbus port that can easily
accommodate additional devices. Evaluate the environmental conditions as well.
A robust solution can prevent failures in challenging situations.
Distance and Environment: How They Affect Modbus Port Selection
When selecting a Modbus port, consider distance and environment carefully. Physical distance can impact signal strength. The longer the distance, the weaker the signal may become. Over long distances, using Rs-485 may reduce data integrity. Alternatively, a
Tcp Modbus Port can offer advantages for longer connections.
Environmental factors play a crucial role as well. Operating in noisy environments can disrupt communication. For instance, electromagnetic interference from machinery can cause data loss. Shielded cables may help, but the choice of port is also vital. In adverse settings, robustness is key. A Tcp Modbus port might be more reliable in such situations.
It’s important to analyze your specific scenario. Are you working in a factory or on a remote site? Each setting poses unique challenges. Reflect on these factors before making a decision. A thorough evaluation of distance and environment will guide you in choosing the right Modbus port for your needs.
Ensuring Reliability and Performance in Modbus Communication
When selecting a Modbus port, reliability and performance are crucial. According to industry reports, nearly 70% of communication failures in industrial settings are due to improper port configuration. Ensuring the right choice minimizes downtime and maximizes system efficiency.
The Modbus protocol operates over various types of physical connections, including RS-232, RS-485, and TCP/IP. Each has unique characteristics affecting their performance. RS-485 is widely favored for its ability to support longer distances and multiple devices. Studies indicate that this connection can reliably function up to 4,000 feet, significantly exceeding RS-232 limits. However, RS-485 may need careful termination to prevent signal degradation.
In contrast, Modbus TCP/IP offers unmatched speed and flexibility in modern network environments. Yet, reliance on network infrastructure can introduce vulnerabilities. Approximately 40% of users report challenges in network latency affecting real-time communication. This variance emphasizes the importance of thorough evaluation based on specific applications, physical distances, and environmental conditions. Balancing these factors ensures robust Modbus communication tailored to users’ operational needs.
How to Choose the Right Modbus Port for Your Needs? - Ensuring Reliability and Performance in Modbus Communication
| Port Type |
Max Data Rate (bps) |
Distance Limit (meters) |
Connection Type |
Best Use Case |
| RS-232 |
115200 |
15 |
Point-to-point |
Short range communication in industrial setups |
| RS-485 |
115200 |
1200 |
Multi-drop |
Long distance communication with multiple devices |
| TCP/IP |
1000000 |
Unlimited (network dependent) |
Networked |
Scalable communications across networks |
| Ethernet |
100000000 |
Depends on network topology |
Networked |
High-speed industrial applications |

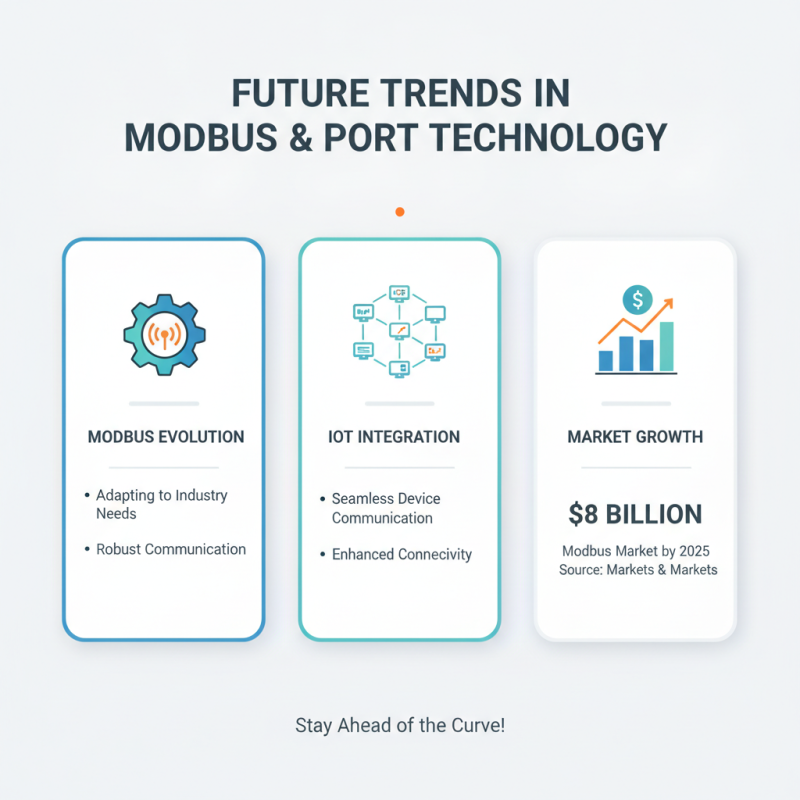

Future Trends in Modbus and Port Technology
As industries rapidly evolve, the need for robust communication protocols remains crucial. Modbus technology is adapting alongside emerging trends. Increasingly, industries are gravitating towards IoT integration. This evolution allows devices to communicate seamlessly. According to a report by Markets and Markets, the Modbus market is projected to reach $8 billion by 2025, underscoring its relevance.
One notable trend is the shift towards higher data rates. Traditional Modbus RTU operates at 9600 bps. New advancements permit rates exceeding 115200 bps. This shift enables more data-rich applications. However, higher rates may compromise reliability if not properly managed. Balancing speed with stability is vital.
**Tip:** Select devices compatible with higher baud rates. Not all equipment can handle these speeds without issues.
Another area of focus is cybersecurity. With increased connectivity, threats are more apparent. A significant percentage of existing Modbus systems lack basic security measures. Addressing this gap is essential to protect sensitive data and maintain reliability.
**Tip:** Regularly update firmware and consider implementing encryption. Small steps can significantly enhance your system's safety.
The evolution of Modbus and port technology ensures it remains a key player in industrial automation. Staying informed about these trends is essential for making optimal choices in system configurations.

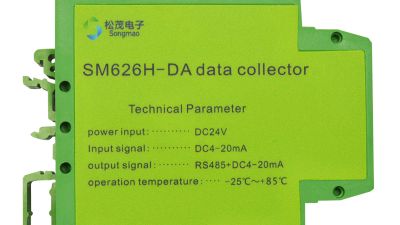

Enhancing Industrial Automation: The Role of the SM626H-DA 4-20mA to RS485 Analog Converter with Modbus Protocol
The SM626H-DA 4-20mA to RS485 analog converter plays a pivotal role in enhancing industrial automation. By leveraging MODBUS-RTU communication via the RS485 interface, this device seamlessly interfaces with various industrial equipment, enabling efficient data acquisition and transmission. Its design is centered around a robust micro RTU system that incorporates an advanced ARM-based microcontroller, high-precision operational amplifiers, and well-engineered input/output circuits. These features not only guarantee stable performance but also ensure high cost-effectiveness, making the SM626H-DA a reliable choice for modern industrial applications.
Furthermore, the SM626H-DA data collector is exceptionally tailored for integration into industrial environments. It is built to withstand harsh conditions, with specialized considerations for temperature variations, vibration resistance, and electromagnetic compatibility. This adaptability allows for consistent operational stability, ensuring that critical data transmission remains unaffected in challenging settings. The device’s versatility and resilience make it an essential component for industries looking to optimize their automation processes while maintaining high-quality standards for their equipment.
FAQS
: The Modbus protocol is used for communication between devices in industrial settings.
Modbus operates over serial lines and Ethernet, providing flexibility for various applications.
Common applications include automation systems, HVAC, and energy management.
Understanding fundamentals is crucial for effective implementation and avoiding misconfigurations.
Misconfigurations, such as incorrect port selection or baud rate, can disrupt operations.
Longer distances can weaken signal strength, impacting data integrity and performance.
Noisy environments and electromagnetic interference can disrupt communication and cause data loss.
Shielded cables may help, but the choice of port is equally important in noisy settings.
Users should consider device distance, data transfer amount, and environmental challenges for optimal selection.
Each setting presents unique challenges, influencing the choice of the right Modbus port.
Conclusion
In choosing the right Modbus Port for your applications, it's essential to first understand the Modbus protocol and its various uses in automation and control systems. The primary types of Modbus Ports—RS-232, RS-485, and Ethernet—each have distinct advantages depending on the required distance, device compatibility, and network environment. Assessing these factors will help ensure seamless communication.
When selecting a Modbus Port, consider the specific operational environment, as distance and environmental conditions significantly affect performance. Reliable Modbus communication is crucial for maintaining efficient operations, so factors such as noise resistance and data integrity should also be taken into account. As technology evolves, staying informed about future trends in Modbus and port technology will be beneficial for optimizing your selection and ensuring long-term viability.
