hart data collector, 32-channel hart gateway, hart to modbus-tcp protocol converter, hart to modbus-RTU converte
Product Introduction

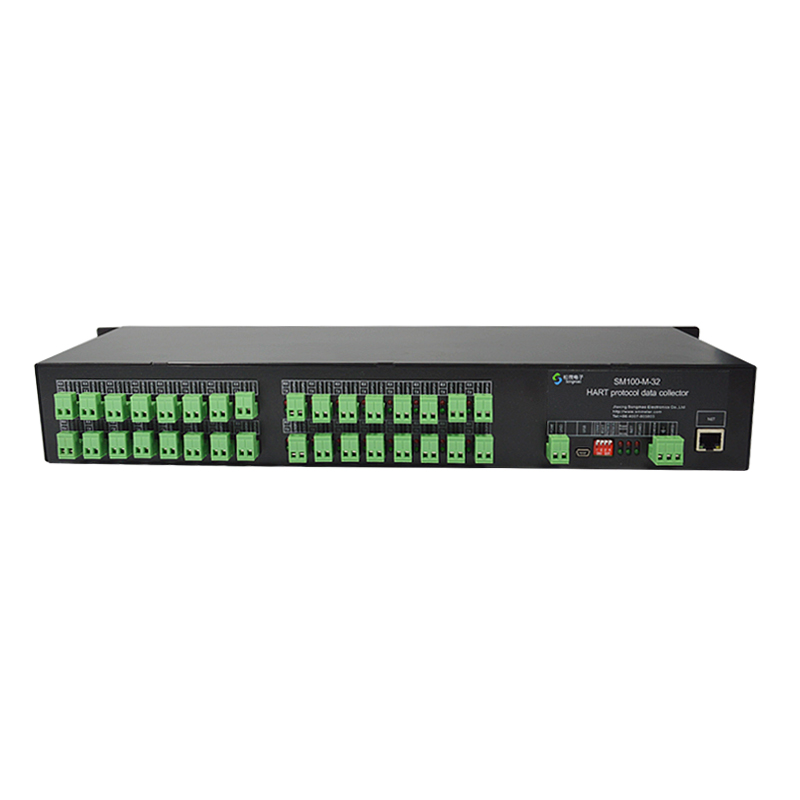

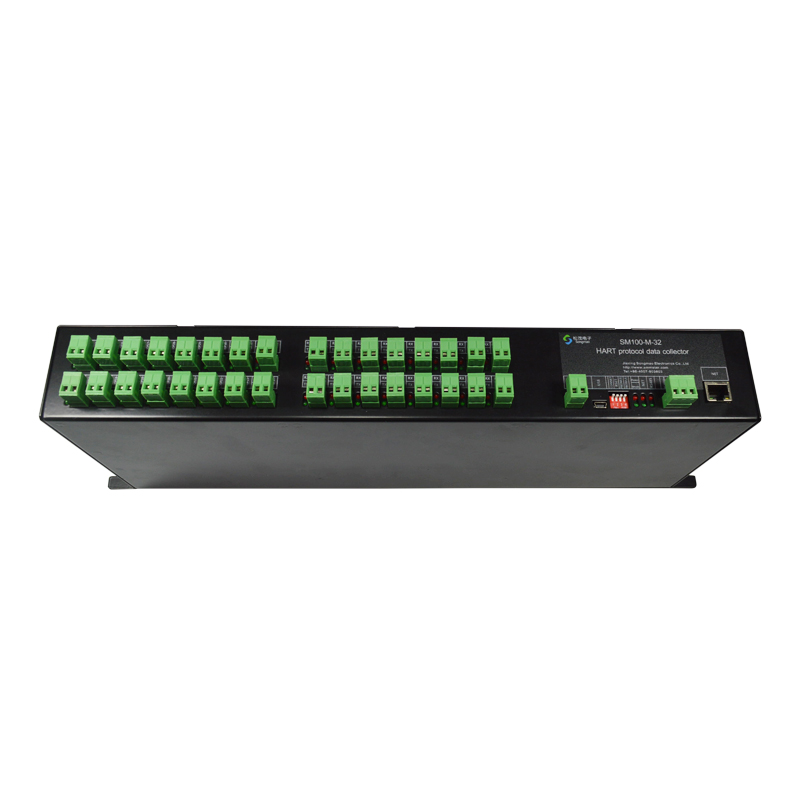

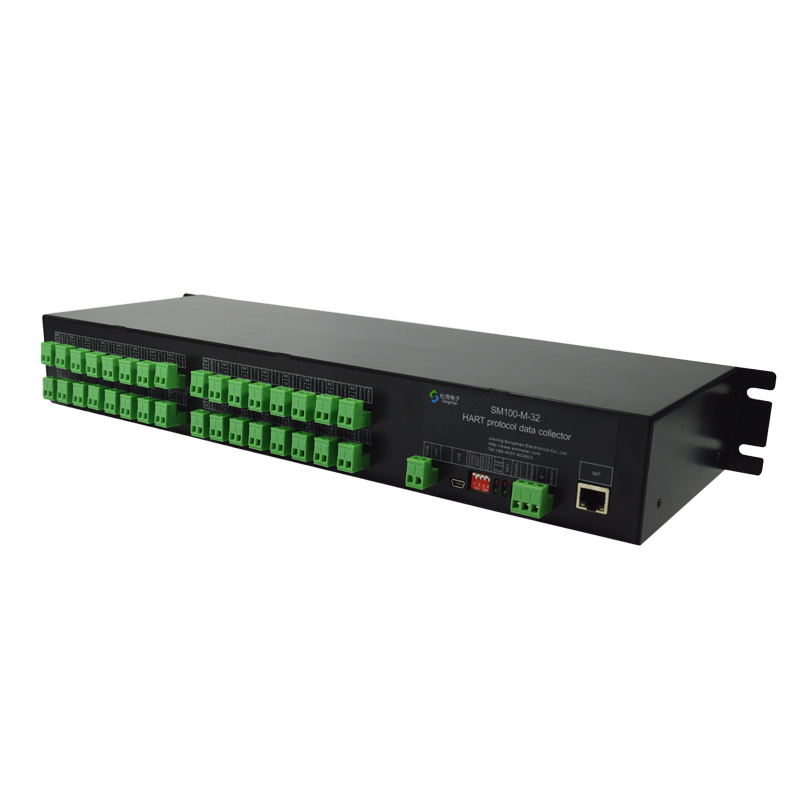

The HART protocol uses the Bell202 Frequency Shift Keying (FSK) standard to superimpose a modulated digital signal on a 4 to 20 mA basis, allowing the HART protocol instrument to allow bidirectional data communication without interfering with the 4 to 20 mA analog signal. SM100-M series HART data collector is an intelligent converter for bidirectional modulation and demodulation of digital signal and analog signal.
Product Features
- Support connection of 32 HART devices at the same time.
- Support parallel and simultaneous scanning of all HART channels configured for the HART data collector.
- Three-terminal electromagnetic full quarantine between HART channels and between HART and host power supply. Each channel adopts two-wire interface. The voltage of electromagnetic quarantine of HART module is not less than 1500 V. It supports the function of separating HART signal/4 ~ 20ma signal.
- The quarantine voltage of RS485 interface and NET Ethernet interface shall not be lower than 1500 V.
- Adopt the modular design of separating the HART module from the host, and support the function of replacing the HART module online in any channel.
- Each channel is provided with an independent indicator light, which provides indication of HART equipment online and HART equipment communication status respectively.
- Equipped with equipment status indicator light: operation/fault, communication interface, etc.
- Data refresh rate per channel & lt; 1 second.
- Support Ethernet interface (speed not less than 100Mbps) and RS485 interface.
- Support proprietary HART commands to read the HART ID of all HART devices.
- Support configuration and operation mode, and support Telnet remote setting.
- Support firmware program update.
- Supports standard DIN rail mounting.
- The equipment does not affect the transmission and accuracy of 4 ~ 20 mA analog signal in normal, power failure or fault, and the loop resistance is less than or equal to 250 ohms.
- This equipment does not supply power to field instruments.
- Compatible with HART protocol Ver5.0 and above.
Main Parameters
- Power supply voltage: DC 24V.
- Operating current: < 80mA。
- Shell size: length 482 mm × width 67 mm × height 160 mm.
- Working temperature: -20 ℃ ~ + 75 ℃.
- Humidity of working environment: 5% ~ 95% (no condensation).
FAQ
1.Are you a factory or trading company?
We are a high-tech enterprise factory integrating R&D, production and sales. We have a complete ERP system and equipment, which can meet your procurement needs.
2.Delivery?
Goods will be dispatched within three working days after receiving the payment.
3.MOQ？
Under normal circumstances, we support a minimum order of one piece.
4.IS OEM service available ?
Yes, product could print your logo , or customized by your design.
5.Payment?
100% payment. You can make the payment by telegraphic transfer
6.What is the size of the SM100-M-32 product?
length 482 mm × width 67 mm × height 160 mm
6.How many hart instruments can the SM100-M-32 be connected to?
It can connect 32 hart instruments
