4‑20mA to Modbus and HART to 4‑20mA: The Bridge Between Analog Signals and Digital Communication

1.Introduction

In industrial fields such as chemical industry, electric power and water treatment, the 4-20mA analog current loop has become the most widely used on-site signal transmission standard by virtue of stable long-distance transmission and strong anti-electromagnetic interference performance. It linearly maps physical parameters such as temperature, pressure and flow to 4-20mA current signals, and realizes real-time transmission of process variables. Nevertheless, pure analog signals only support single parameter transmission, lacking device diagnosis, parameter configuration and other extended data interaction functions.

Modbus digital protocol and HART hybrid protocol are the mainstream upgraded forms of industrial signal communication. Modbus realizes networked multi-device digital interaction, while HART integrates analog compatibility and digital expandability. To solve the compatibility problem between legacy analog equipment and modern digital systems, 4-20mA to Modbus and HART to 4-20mA conversion technologies have become indispensable technical bridges, realizing the seamless integration of old and new industrial control systems and reducing equipment renovation costs.

2.Overview of Core Industrial Signal Protocols

This chapter summarizes the characteristics, advantages and limitations of three mainstream industrial signal modes, and clarifies the necessity of signal conversion.

The core parameter comparison is shown in Table 1.

Table 1. Performance Comparison of Core Industrial Signal Protocols

3.Working Mechanism of Dual Signal Conversion Technologies

3.1 4-20mA to Modbus Conversion (Analog Digitization)

4-20mA to Modbus conversion is the core technology for digitization of legacy analog equipment, completing the conversion from continuous analog signals to standard Modbus digital signals through industrial conversion modules. The working flow is shown in Figure 1: the module first collects and filters on-site 4-20mA current signals to eliminate electromagnetic interference; then converts analog signals into high-precision digital data via ADC chips and completes linear calibration; finally packages digital data into Modbus RTU/TCP protocol frames, stores them in registers, and responds to upper computer commands to realize networked data uploading.

Figure 1. Flowchart of 4-20mA to Modbus Signal Conversion

This technology solves the problem that traditional analog instruments cannot access digital SCADA and PLC systems, realizing the upgrade from single-point signal transmission to networked centralized monitoring, which is the main technical means for low-cost digital renovation of old production lines.

3.2 HART to 4-20mA Conversion (Hybrid Signal Compatibility)

HART protocol superimposes low-frequency FSK digital signals on the basis of 4-20mA analog loop, which cannot be identified by traditional analog acquisition systems. HART to 4-20mA conversion realizes hybrid signal decoupling and standard analog signal output, and the working principle is shown in Figure 2: the conversion module receives HART hybrid signals, separates and shields redundant digital FSK components through frequency discrimination filtering, retains linear 4-20mA analog signals, and outputs calibrated standard analog signals compatible with old systems.

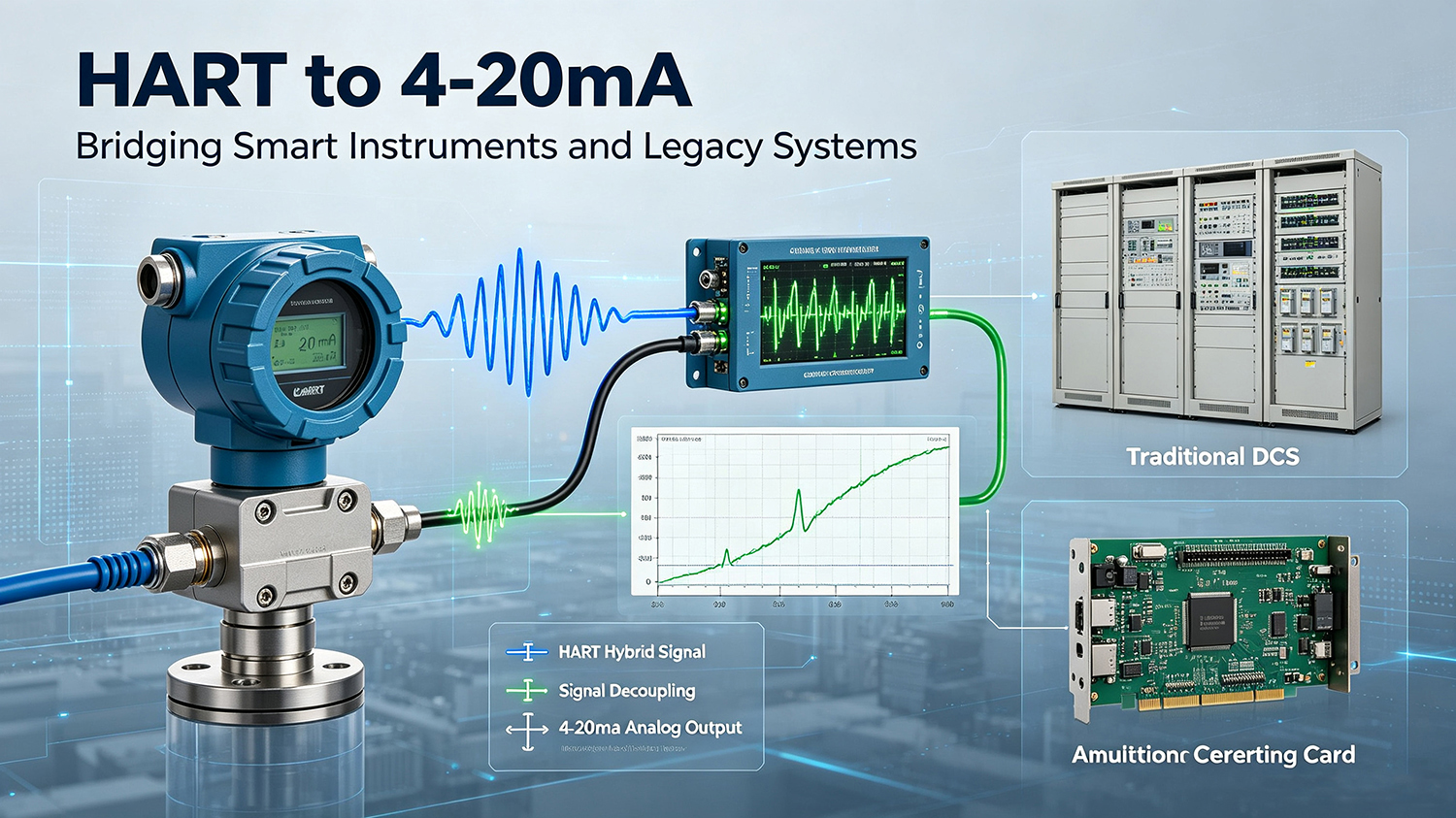

Figure 2. Schematic Diagram of HART Hybrid Signal Decoupling

High-performance conversion modules support dual signal processing, which can not only output standard 4-20mA signals for old system control, but also parse HART digital information such as equipment faults and secondary variables, taking into account system compatibility and intelligent monitoring functions.

4.Technical Advantages and Application Scenarios

The two conversion technologies form a complete analog-digital communication bridge, with prominent engineering application values, and the system docking architecture is shown in Figure 3.

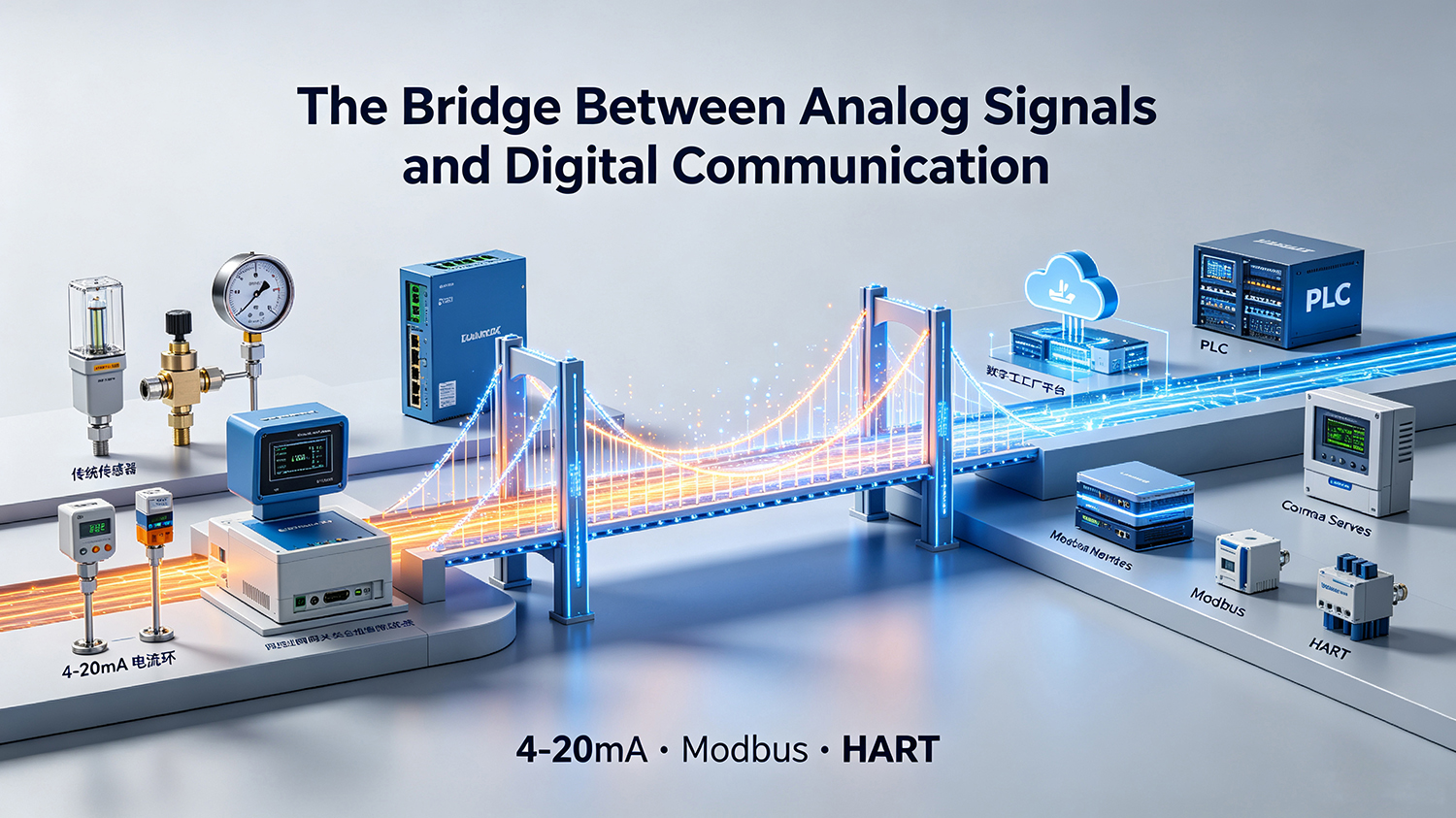

Figure 3. Overall Architecture of Analog-Digital Signal Conversion System

In terms of technical advantages, firstly, it maximizes asset utilization, avoiding large-scale replacement of stable legacy analog equipment and reducing renovation costs and downtime losses. Secondly, it balances compatibility and intelligence, enabling old systems to adapt to new intelligent instruments and traditional instruments to access digital networks. Thirdly, industrial-grade conversion modules have high stability, simple wiring and strong environmental adaptability, suitable for complex industrial sites.

In engineering applications, 4-20mA to Modbus conversion is mainly used for digital renovation of legacy production lines, realizing unified networked monitoring of traditional analog sensors. HART to 4-20mA conversion is applied to the gradual upgrading of intelligent instruments, solving the compatibility problem between new HART instruments and old analog control systems. The combined application of the two technologies can integrate heterogeneous equipment in large-scale industrial parks to build a unified digital monitoring system.

5.Conclusion

4-20mA to Modbus and HART to 4-20mA bidirectional conversion technologies are key bridges connecting industrial analog and digital communication systems. 4-20mA to Modbus activates the value of legacy analog equipment through signal digitization, while HART to 4-20mA realizes the backward compatibility of intelligent hybrid signals. Both technologies effectively solve the heterogeneous signal docking problem in industrial system upgrading, with the advantages of low cost, high stability and strong practicability.

With the development of industrial Internet and intelligent manufacturing, signal conversion technologies will develop towards high-precision, multi-protocol integration and wireless transmission, further empowering the intelligent and digital transformation of traditional industrial production lines.
