How to Choose Between Modbus RTU and Modbus TCP? — Full Comparative Analysis for 2026
I. Understand the Essence of Two Core Concepts
1.1. One to One Communication Connection of Modbus TCP
Modbus TCP runs over TCP/IP Ethernet with standard Socket TCP connections at the bottom layer:
✅ An exclusive independent TCP connection is established between the master station (Master Client) and each slave station (Slave Server).
✅ Physical link: Switches / routers. Devices are distinguished by IP addresses on the network layer; each slave station has an independent IP.
✅ Connection model: Peer to Point. The master station and an individual slave station occupy an exclusive link session; it is inherently one to one.
✅ No shared bus. Multiple slave stations do not share the same physical channel for sending and receiving data.
1.2. One Master Multi Slave Polling of Modbus RTU (485 Bus)
Modbus RTU is based on the RS485 differential bus with a sharedbus architecture on the physical layer:
✅ Up to 32 slave stations can be connected in parallel on one 485 bus. All devices share the same set of A/B signal wires.
✅ Communication rule: Singlemaster architecture. Only the master station can actively send messages; slave stations passively respond at all times.
✅ Data interaction: Polling. The master station polls slave stations No.01, No.02, No.03… by address sequentially. Only the addressed slave replies while others listen silently.
✅ Only one message transaction (master send / slave reply) can exist on the bus at any time. Multiple devices timeshare the bus.
II. Detailed Comparison of Core Dimensions

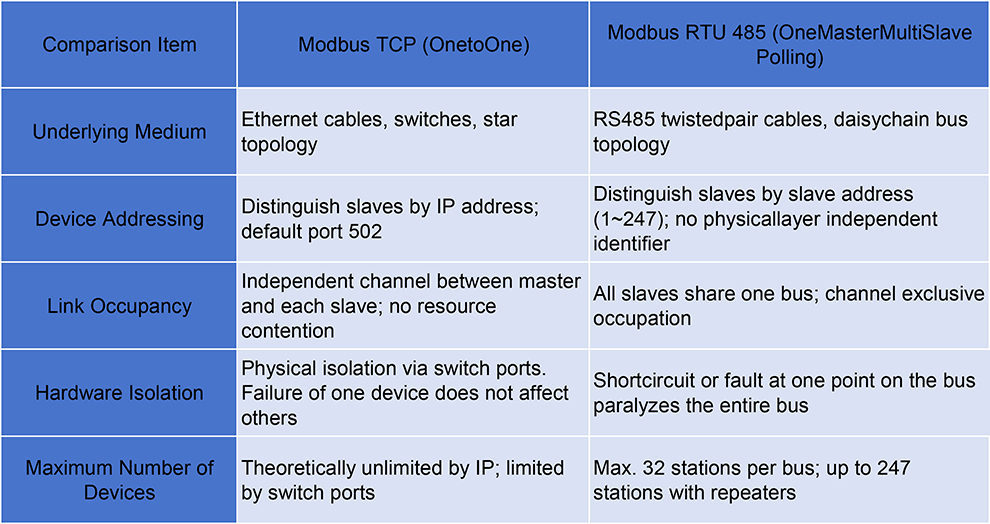

2.1.Physical Layer and Link Architecture
2.2.Communication Connection Model (One to One vs Shared Bus Polling)
Modbus TCP (One to One)
（1）Independent TCP session for each slave station: The master can establish multiple TCP connections with different slaves simultaneously.
（2）Parallel communication capability: Switches forward messages for different slaves in parallel; data of multiple slaves can be sent/received nearly simultaneously.
（3）No collision mechanism: Isolated by IP + switch. Two slave stations will never seize the channel by sending data at the same time.
（4）Connection lifecycle: Persistent long connections or on demand short connections. Disconnection of one slave has no impact on others.
Modbus RTU (One Master Multi Slave Polling)
（1）Globally shared channel; only one set of data interaction can happen at one moment.
（2）Serial polling mechanism: The master must send query commands one by one. It can send the next command only after receiving a complete reply from the previous slave.
（3）Bus collision risk: Protocol enforces single master restriction. Simultaneous transmission by multiple masters causes garbled bus messages.
（4）Serial blocking: Slow responding or offline slave stations block polling cycles of the whole bus.
2.3. Data Interaction Timing and RealTime Performance
3.1.Modbus TCP
🔹 Parallel sending and receiving for multiple slaves; polling cycle is not linearly aggravated by the number of slaves.
🔹 Independent channels do not interfere with each other. While reading Slave 1, Slave 2 and Slave 3 can transmit data synchronously.
🔹 Latency mainly comes from Ethernet forwarding (millisecond level). Real time performance degrades slightly as stations increase.
3.2.Modbus RTU 485
🔹 Strict serial polling. Total cycle = single station read/write time × number of slaves.
🔹 More slaves lead to linearly longer scan cycles and sharp deterioration of real time performance.
🔹 If one slave fails to respond, the master has to wait for timeout before skipping it, greatly extending the cycle.

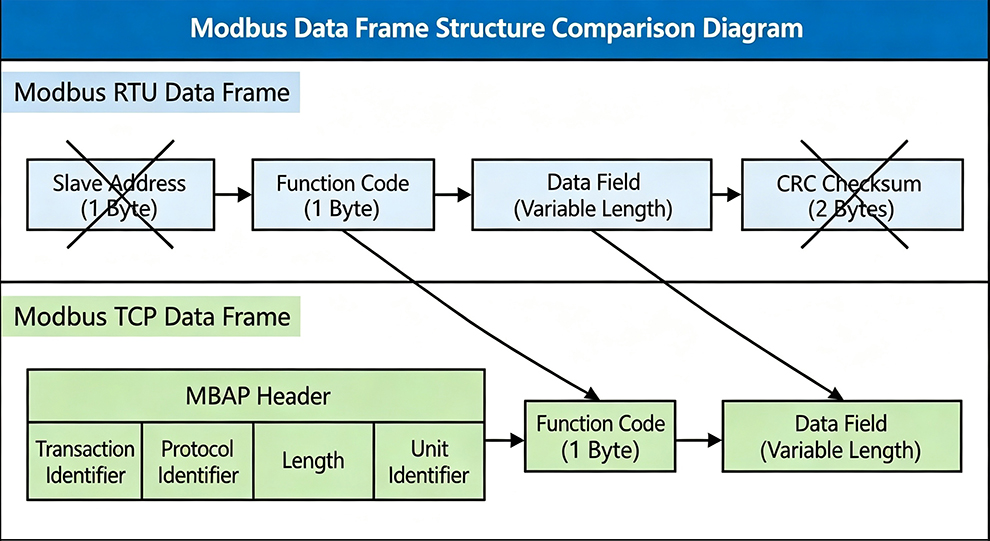

2.4. Differences in Protocol Addressing and Message Frame Structure
4.1.Modbus TCP
🔹 The Unit ID (1~247) inside messages is only for compatibility with legacy slaves. Devices are truly distinguished by IP addresses.
🔹 Under one to one connections, one TCP link corresponds to one IP based slave. Unit ID is often fixed to 1.
🔹 Multiple IP based slaves are fully independent; no message cross talk.
4.2.Modbus RTU
🔹 The whole bus shares electrical wiring. Target devices are distinguished only by the slave address byte at the start of frames.
🔹 All messages are broadcast to every slave on the bus. Only the addressed slave replies while others discard frames.
🔹 Polling based addressing is mandatory; no data returns without polling requests.
2.5. Fault Isolation Characteristics
💡 TCP one to one: Disconnected network cable or crashed slave only terminates its own TCP connection. Communication of other slaves remains completely unaffected, delivering excellent fault isolation.
💡 485 one master multi slave: Short circuit at bus terminals or damaged transceiver chips of a slave pull down bus voltage level, cutting off communication for all slaves. Single point faults produce global impacts.
2.6. Networking Scalability
6.1.Modbus TCP
🔹 Star type networking. New slaves only need to connect to the switch without modifying existing wiring.
🔹 Support cross segment and long distance transmission via optical fiber, VPN.
🔹 Multi master support: Multiple PLCs / HMI hosts can act as clients to access one slave in parallel.
🔹 Daisy chain bus wiring. Adding new slaves requires tapping into the bus, causing heavy on site work.
🔹 Transmission distance limited (within 1200 m). Repeaters are mandatory for long distance links.
🔹 Natively single master only. Concurrent transmission by multiple masters triggers bus collisions. Extra gateways are required for multimaster scenarios.
2.7. Concurrent Read Write Capability
💡 TCP one to one: Multi threaded concurrency on the master side. Read write commands can be sent to multiple slaves simultaneously with parallel data return.
💡 485 polling: Pure serial execution. Only one slave request can be processed at a given time. All operations are queued.
III. Clarification of Key Misconceptions
3.1.Misconception: Modbus TCP cannot handle multiple slaves Correction: TCP can connect dozens or hundreds of slaves. Each slave establishes an independent one to one connection with the master instead of sharing one channel. For 485, all slaves timeshare one single channel.
3.2.Misconception: One to One means only one slave can be read at a time Correction: TCP supports multiple concurrent TCP sessions. The master can initiate multiple sessions to read several slaves in parallel. Serial polling is forced by physical hardware limits for 485.
3.3.Misconception: Unit ID works identically to the 485 slave address Correction: 485 uses slave addresses to distinguish devices within the bus. TCP distinguishes devices by IP addresses. Unit ID is only used for gateway forwarding (TCP to 485 gateway scenarios). Unit ID has no real addressing function for pure TCP slaves.
IV. Applicable Scenarios for Two Architectures
Modbus TCP One to One (Ethernet) — Recommended for:
🔹 Large number of stations and high real time requirements
🔹 Dispersed devices requiring long distance or cross region networking
🔹 Fault isolation requirement: failure of one device must not break the whole system
🔹 Multiple masters such as HMI and PLC accessing devices concurrently
Modbus RTU 485 One Master Multi Slave Polling — Recommended for:
🔹 Short local on site distance with few devices (≤10 units)
🔹 Low cost wiring with no access to switches or Ethernet infrastructure
🔹 Local simple data acquisition for small size sensors, meters and frequency converters
V. Supplementary: Inter Station Communication Rules for Modbus TCP
5.1. Can slaves communicate with other slaves?
Under standard Modbus TCP, slaves cannot initiate conversations or communicate with one another and are completely unaware of each other.
（1）Asymmetric fixed communication roles Modbus TCP strict role definition: Master = TCP Client (initiates read/write actively); Slave = TCP Server (passively waits for connections and only responds). All active messages must be sent by masters; slaves only respond and never send packets voluntarily.
（2）No inter slave links in the TCP connection model Topology: Master ↔ Slave 1, Master ↔ Slave 2, Master ↔ Slave 3. There exists no TCP session between Slave 1 ↔ Slave 2. Links are fully isolated at layer 4.
（3）Switches only forward master to slave messages Even if all devices connect to one switch, protocol rules prevent slaves from scanning other IPs or exchanging messages. Layer 2 connectivity does not guarantee application layer interoperability.
（4）Comparison with 485 RTU 485 bus broadcasts every message across the bus so slaves can overhear traffic between other stations. Modbus TCP slaves cannot monitor, receive or exchange peer to peer data.
（5）Special nonstandard exceptions Slave to slave data exchange only occurs via proprietary vendor peer to peer protocols or data relaying through gateways / PLCs. These are not standard Modbus TCP behaviors.
5.2. Can masters communicate with other masters?
（1）Pure Client mode (master only): Masters cannot talk or exchange data with each other Modbus TCP role definition: Master = TCP Client (only initiates connections, does not listen to port 502); Slave = TCP Server (listens to port 502 for incoming access). Two masters running purely as Clients do not open Modbus service listening ports and cannot establish TCP connections to each other. When multiple masters read the same slave, they communicate independently. Messages are not forwarded, and masters remain fully isolated.
（2）Mutual master access with dual role devices (Client + Server) Industrial controllers and PLCs support bidirectional Modbus TCP. One single device can act as a Client collecting field slaves while opening a Server listening on port 502. Interaction example: Device A (Client) accesses Device B (Server); Device B (Client) accesses Device A (Server). This is not true master tomaster conversation. Instead, each device treats the peer as its slave via register read/write operations.
（3）Comparison with Modbus RTU 485 Modbus RTU 485 natively supports only one single master. Dual master operation is impossible and no master to master communication exists. Modbus TCP over Ethernet permits multiple masters to coexist, yet inter master communication requires enabling the server function.
（4）Common Misconception Clarification
💡 Misconception: Multiple masters under one switch can communicate automatically Correction: Switches only provide network paths. Connections cannot be built without the peer device enabling the Modbus server service.
💡 Misconception: Masters exchange data when reading one shared slave Correction: The slave only replies requests from individual masters and does not forward messages among masters. Masters stay fully isolated.
VI. One Sentence Summary of Core Differences
6.1.Modbus TCP (One to One): Independent dedicated communication channels for devices, parallel interactions, IP based isolation without bus contention. Slaves never communicate among themselves. Pure Client masters cannot intercommunicate; dual role devices can access each other.
6.2.Modbus RTU 485 (One Master Multi Slave Polling): All slaves share one physical bus with serial timedivision interactions. Polling is done by addressing. High risk of channel contention. Only one single master is allowed on the bus; no multi master intercommunication.
