Which Communication Is Better, Modbus-RTU or Modbus-TCP?
1.Basic Principles and Core Characteristics of the Two Protocols
1.1 Working Principle of Modbus-RTU
Modbus-RTU is a binary serial communication protocol based on RS485/RS232 physical interfaces. It transmits data through compact binary frames and adopts CRC cyclic redundancy check, featuring simple logic and extremely low protocol overhead. The network follows a single-master multi-slave polling mechanism, where the master station queries each slave station in sequence, and slaves only respond passively without active data uploading capability. Requiring no complex network equipment, the protocol only uses standard shielded twisted pairs for networking, making it a classic and reliable local communication solution for industrial sites.
1.2 Working Principle of Modbus-TCP
Modbus-TCP is an Ethernet-based industrial communication protocol. It encapsulates Modbus application-layer data into standard TCP/IP packets and adds a 7-byte MBAP header for data identification and transmission management. It relies on the built-in handshake, retransmission, and error correction mechanisms of the TCP protocol instead of CRC verification. Breaking the limitations of serial bus topology, Modbus-TCP supports full-duplex communication and multi-master parallel data interaction. It can expand networks through switches and routers, adapting to LAN, WAN, and even cloud remote data transmission, serving as the mainstream networking solution for modern digital factories.
2.Core Advantages and Disadvantages Comparison
2.1 Advantages and Disadvantages of Modbus-RTU
Core Advantages: First, it has extremely low deployment costs, requiring no Ethernet modules or switches, with simple wiring and minimal maintenance investment, suitable for low-budget small and medium-sized projects. Second, it provides strong anti-interference performance. The RS485 serial bus tolerates severe electromagnetic interference and voltage fluctuations on industrial sites, ensuring stable communication under harsh working conditions. Third, it delivers stable real-time performance. The lightweight protocol has no redundant overhead, achieving ultra-low and stable delay for short-distance single-device control. Fourth, it offers excellent compatibility, being universally supported by legacy industrial equipment and traditional instruments, making it the best choice for old factory renovation.
Main Shortcomings: Its transmission speed is limited, with a maximum baud rate of only 115200 bps, resulting in low data throughput. The maximum stable transmission distance of RS485 bus is 1200 meters, which cannot support cross-region networking. It adopts a single-master polling mode, with a stable limit of 32 slave devices per segment. As the number of devices increases, the polling cycle extends significantly and causes system latency. Moreover, it is an independent local communication system that cannot connect with industrial clouds, SCADA, MES, or other digital platforms for remote data transmission.
2.2 Advantages and Disadvantages of Modbus-TCP
Core Advantages: Firstly, it achieves extremely high transmission efficiency. Based on 10/100/1000 Mbps Ethernet, its speed is dozens to hundreds of times faster than RTU, meeting the requirements of high-frequency and large-volume data collection. Secondly, it has powerful networking capabilities, supporting star and tree topologies with no strict limit on device quantity, suitable for large-scale distributed industrial systems. Thirdly, it breaks distance restrictions, realizing cross-workshop and cross-factory long-distance communication via optical fibers and routing, supporting remote monitoring and cloud data uploading. Fourthly, it features strong scalability, perfectly matching modern industrial Ethernet architecture and seamlessly connecting with various digital management systems.
Main Shortcomings: Modbus-TCP requires higher overall investment, including Ethernet devices, industrial switches, and professional network deployment and debugging. In strong electromagnetic interference environments, Ethernet signal stability is slightly inferior to RS485 serial communication. In addition, TCP three-way handshake and data encapsulation bring minor protocol overhead, leading to slightly higher and less stable delay than RTU in simple single-device short-distance control scenarios.
3.Precise Application Scenario Classification
3.1 Preferred Scenarios for Modbus-RTU
Modbus-RTU is more suitable for small-scale, short-distance, low-cost local industrial control scenarios with harsh working conditions. Typical applications include: renovation projects of old industrial equipment equipped only with RS485 interfaces; small standalone automated equipment, single production line control, and building automation instrument collection with fewer than 32 devices and no remote monitoring requirements; field environments with strong electromagnetic interference such as metallurgy, mining, and high-voltage workshops; and lightweight projects with limited budgets that pursue simple and stable local communication.
3.2 Preferred Scenarios for Modbus-TCP
Modbus-TCP is the preferred solution for networked, long-distance, large-capacity, and intelligent modern industrial projects. Typical applications include: large distributed industrial systems such as whole-factory intelligent production lines and multi-workshop integrated networking, requiring parallel high-efficiency data interaction; industrial IoT and remote monitoring projects that need cross-region transmission, remote debugging, and cloud data analysis docking with SCADA and MES systems; and new intelligent factory construction and digital upgrading projects that require long-term expandability, system integration, and intelligent management.
4.Comprehensive Performance Comparison Summary

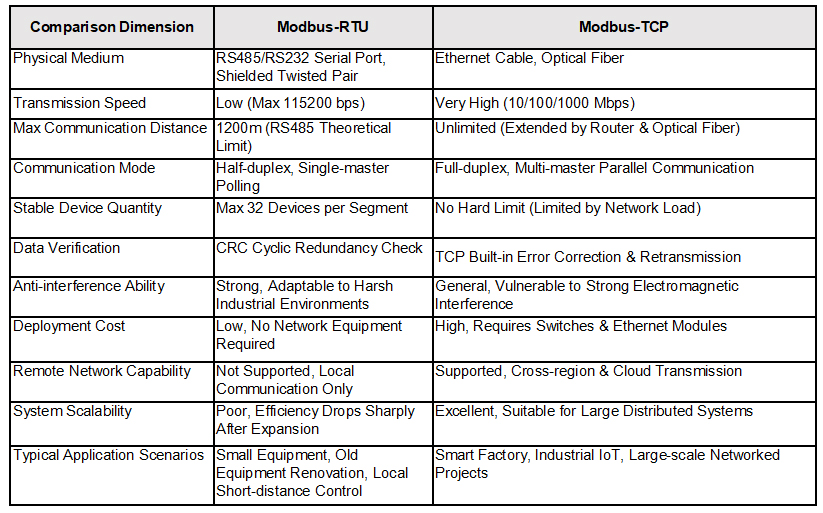

To intuitively reflect the differences between the two protocols and facilitate rapid engineering selection, a detailed comparison table covering core dimensions is listed below:

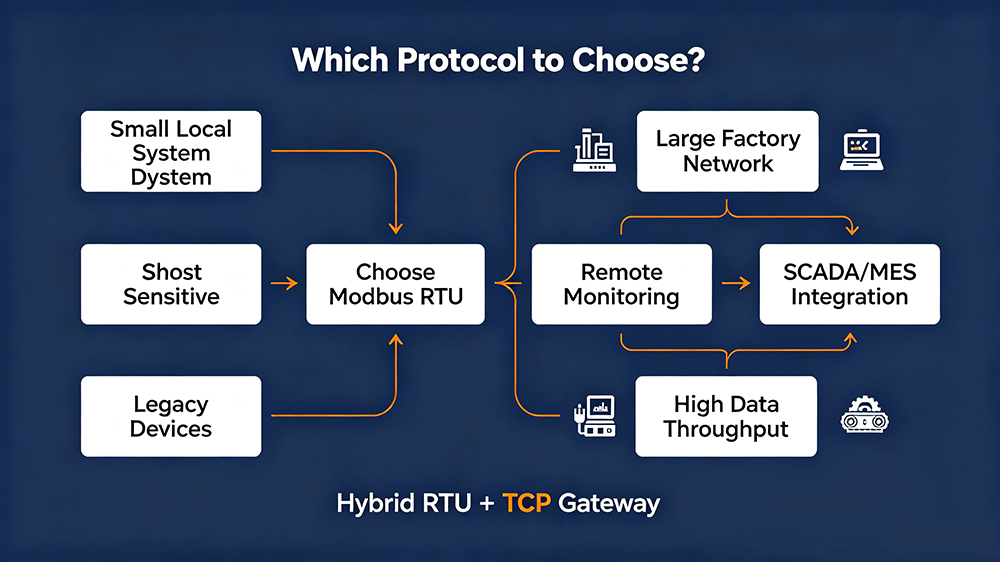

5.Core Selection Principles for Industrial Sites
5.1 Project Scale and Device Quantity
Modbus-RTU is preferred for small-scale projects with few devices and independent local control. Modbus-TCP is mandatory for large factory-level projects with numerous networking devices and parallel data interaction requirements, effectively avoiding system delay and data congestion caused by RTU’s serial polling mechanism.
5.2 Transmission Distance and Functional Requirements
RTU fully meets the demands of local data collection within 1000 meters without remote monitoring requirements. For cross-region long-distance transmission, remote equipment maintenance, and cloud data uploading scenarios, Modbus-TCP is the only reliable solution.
5.3 On-site Working Conditions and Budget
For traditional projects with strong on-site interference, harsh working environments, and limited budgets, Modbus-RTU provides higher stability and cost performance. For standardized smart factories and digital transformation projects that pursue scalability, network integration, and high-speed data transmission, Modbus-TCP is the optimal choice despite higher investment.
6.Conclusion
In conclusion, there is no absolute distinction between good and bad for Modbus-RTU and Modbus-TCP; the core lies in scenario adaptation. Modbus-RTU is a low-cost, high-stability, lightweight local communication solution, perfectly matching traditional small-scale industrial scenarios. Modbus-TCP is an efficient, scalable, network-oriented intelligent communication solution, catering to the digital development needs of modern industry.
In practical engineering applications, a hybrid architecture is widely adopted. Protocol gateways are used to convert RTU serial signals to TCP network signals, combining the on-site stability of RTU and the remote networking advantage of TCP. This complementary solution has become one of the most flexible and reliable industrial networking methods at present.
